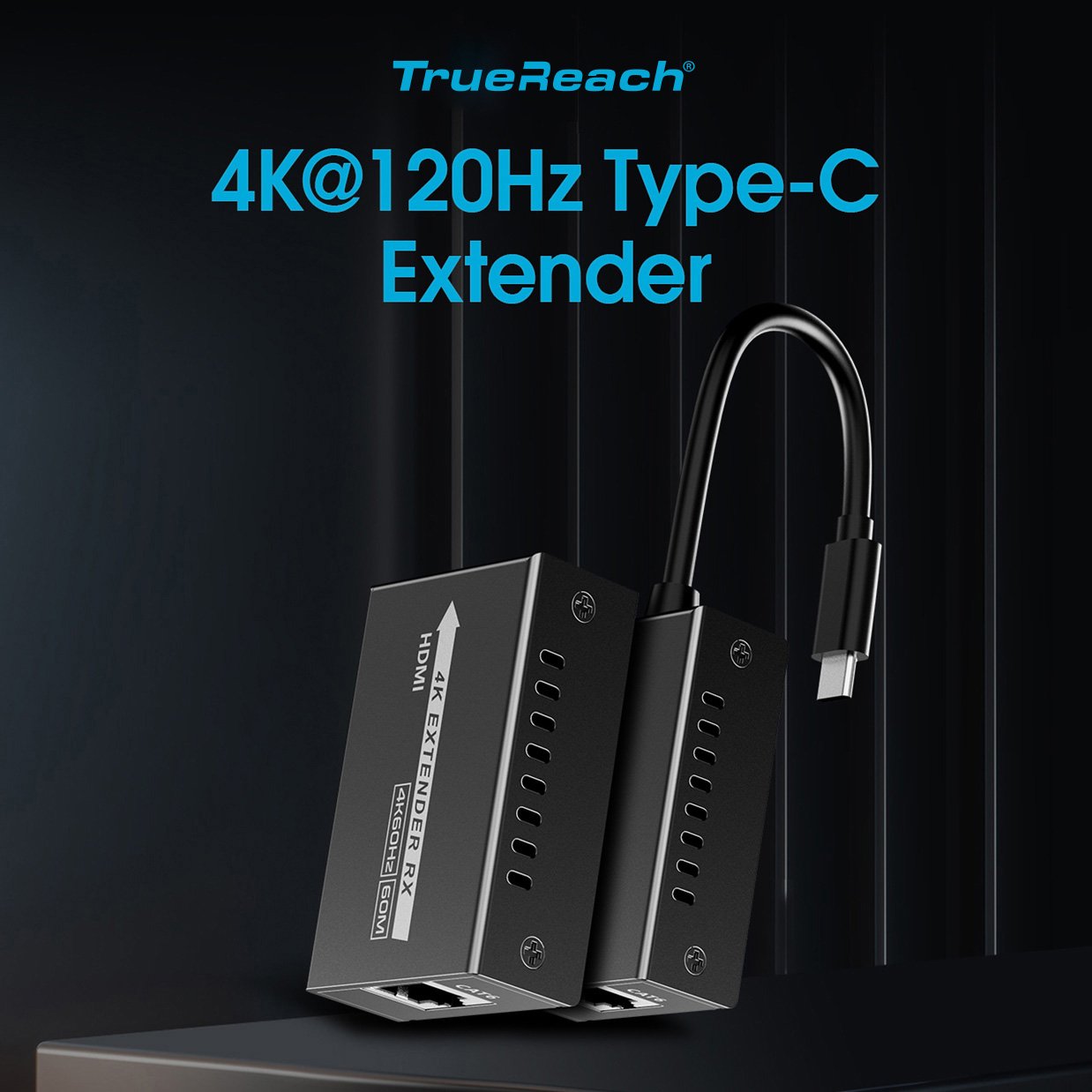

4K@120Hz Type-C Transmitter & HDMI Receiver Extender Kit Over Cat6
$159.95

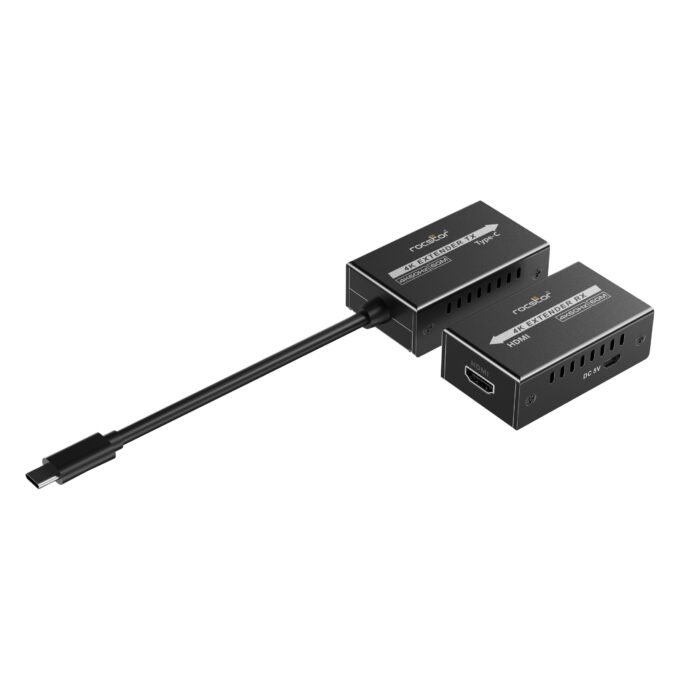

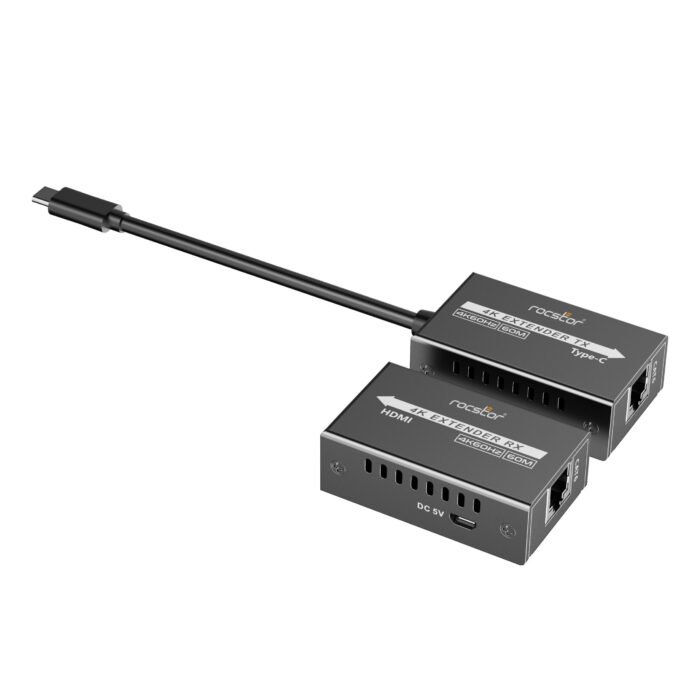

TrueReach TR7 4K@120Hz USB-C HDMI Extender over Ethernet Cable – USB 3.1 Type C Transmitter & HDMI Receiver – Up to 197 ft (60m) 4K@60Hz and 4K@120Hz 82ft (25m) Transmission Distance – Includes HDMI Transmitter and Receiver (Kit) – Black
4K@120Hz USB-C HDMI Extender over CAT6/CAT6a/Cat7 Ethernet Cable Up to 197ft
Expand your connectivity options with the Rocstor TrueReach 4K@120Hz USB-C HDMI Extender over CAT6/CAT6a/Cat7 Ethernet Cable. This versatile extender allows you to extend your USB-C and HDMI signals over long distances, providing flexible and convenient connectivity solutions. With its advanced features and reliable performance, it is the perfect choice for professional installations, home theaters, and gaming setups.

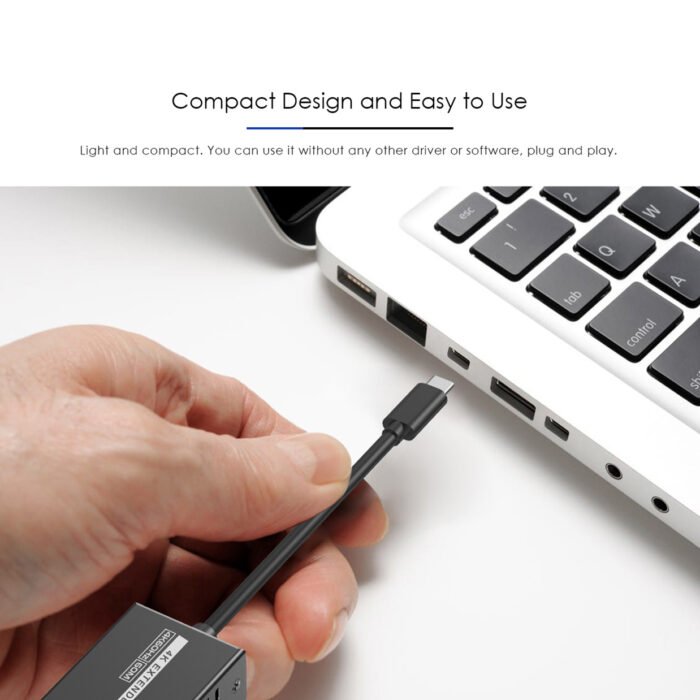

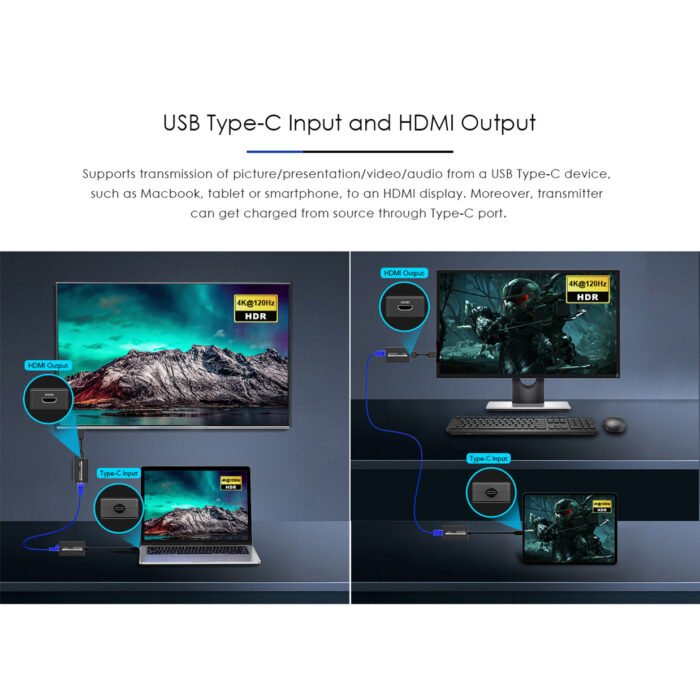

The TrueReach HDMI Extender supports USB 3.1 Type C transmission, allowing you to extend the capabilities of your USB-C devices. Connect your USB-C laptops, tablets, or smartphones to external displays or projectors with ease, expanding your workspace or enjoying media on a larger screen.
Experience stunning video quality with support for 4K resolution at 120Hz. Whether you’re gaming, watching movies, or creating content, the TrueReach extender ensures smooth motion, vibrant colors, and sharp details. Immerse yourself in the visual richness of high-definition content.
With transmission distances of up to 230ft (70m) for 1080p, 197ft (60m) for 4K@60Hz, and 98ft (30m) for 4K@120Hz, this extender provides flexibility in installation and placement. Extend your USB-C and HDMI signals without compromising on quality or performance.
Features:
• Extend USB-C and HDMI signals over long distances using CAT6/CAT6a/Cat7 Ethernet cable

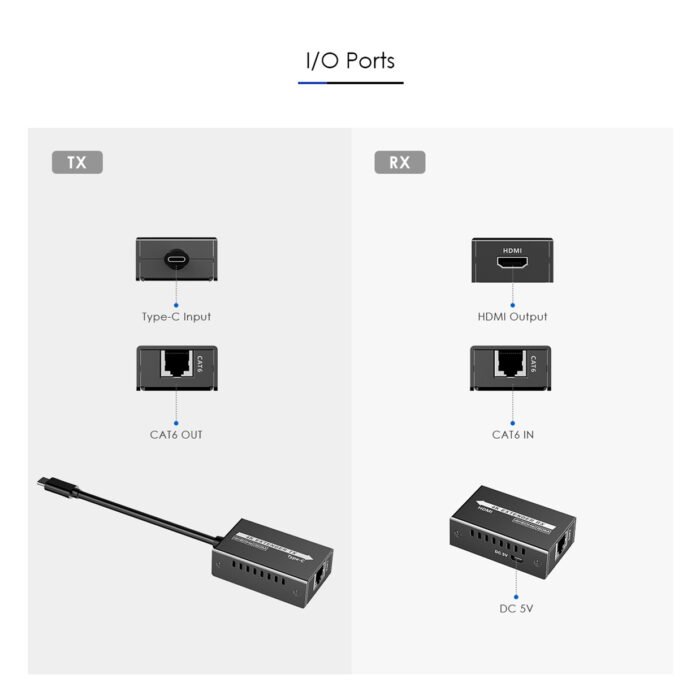

• USB 3.1 Type C transmitter and HDMI receiver for versatile connectivity
• Support for 4K resolution at 120Hz for immersive visuals
• Transmission distances: 230ft (70m) for 1080p, 197ft (60m) for 4K@60Hz, 98ft (30m) for 4K@120Hz

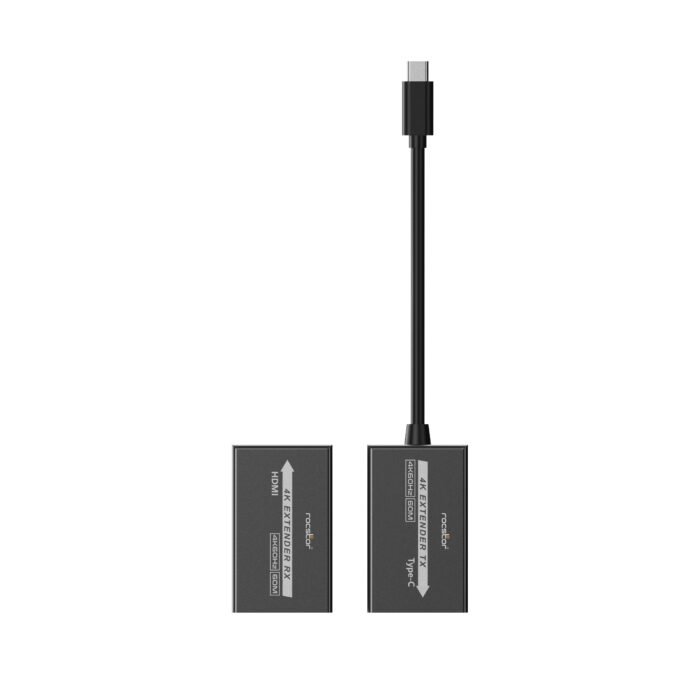

• Includes HDMI transmitter and receiver (kit) for easy setup
• Streamline your workspace or enjoy media on larger screens
• Perfect for professional installations, home theaters, and gaming setups
• Sleek black design complements any environment
| Weight | 0.26 lbs |
|---|---|
| Dimensions | 3.31 × 4.63 × 2.95 in |
| Style | |
| Method |
CATx |
| Video In |
USB-C |
| Video Out |
HDMI |
| Max Resolution |
4K/120 |
| Max Range |
05 – 30 |
Specification
[table type=”table-hover”]
| General Information | |
| Manufacturer: | Rocstor |
| Part Number: | Y10G007-B2 |
| Voltage | |

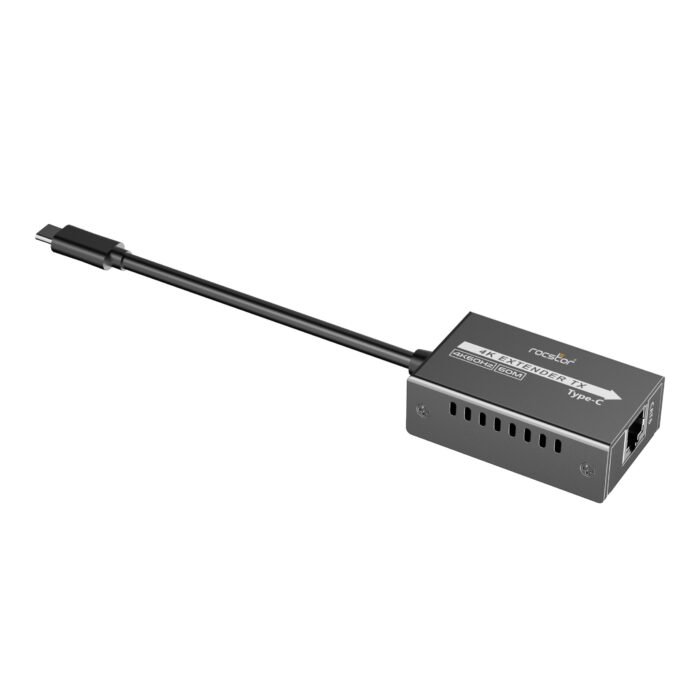

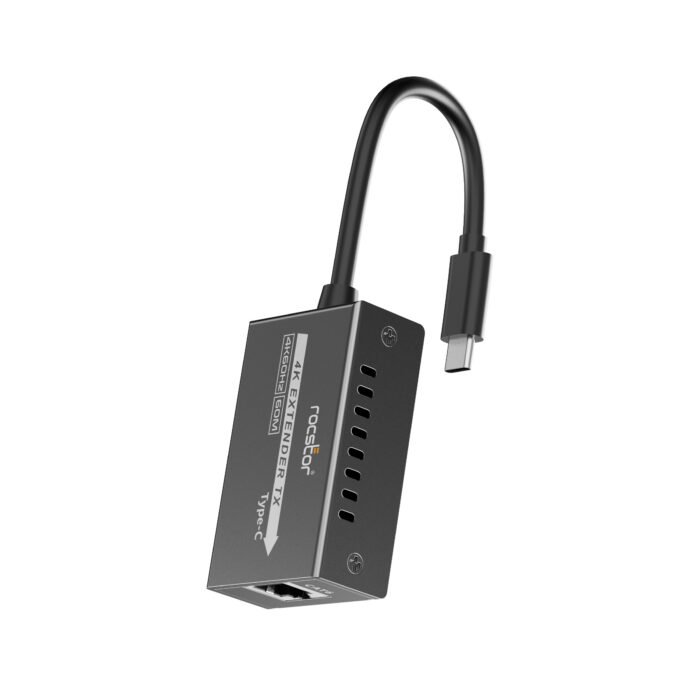

| Transmitter-TX | Power by the signal source |

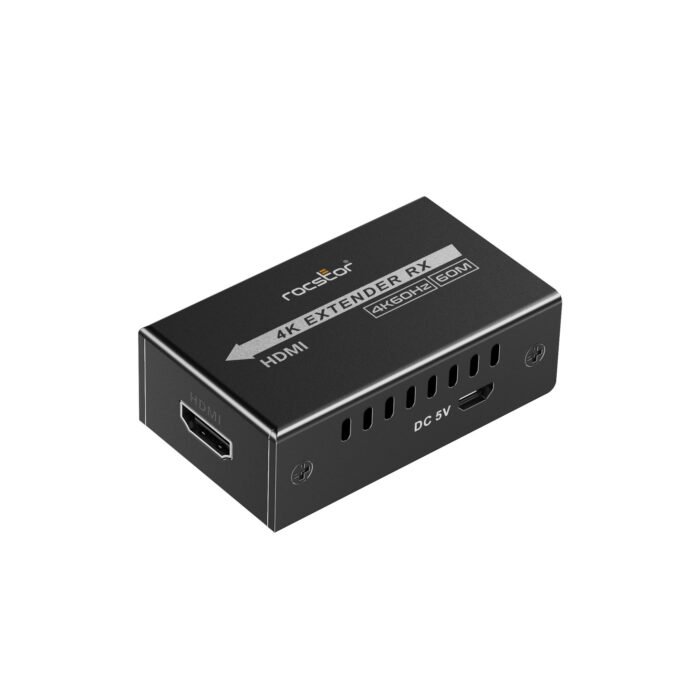

| Receiver-RX | DC 5V500mA |
| Power Consumption | TX < 3W, RX < 3W |
| HDMI Performance | |
| HDMI version | HDMI 2.0 |
| HDCP version | HDCP 2.2, HDCP 1.4 |
| Max transmission rate | 18Gbps |
| Resolution | 1280×720, 1280×960, 1366×768, 1440×900, 1680×1050, 1920×1080, 1920×1200, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60/ 120Hz, 2560×1440@50/60/120/144Hz, 3840×2160@24/25/30/50/60/100/120Hz, 4096×2160@24/25/30/50/60Hz |
| TMDS Signal | 5Vp-p (TTL) |
| DDC Signal | 0.7-1.2Vp-p (TMDS) |
| Transmission Distance | |
| CAT6/6A/7 | 4K@60Hz≤60m 2560×1440@120/144Hz ≤30m 4K@100/120Hz≤25m |
| A/V Properties | |

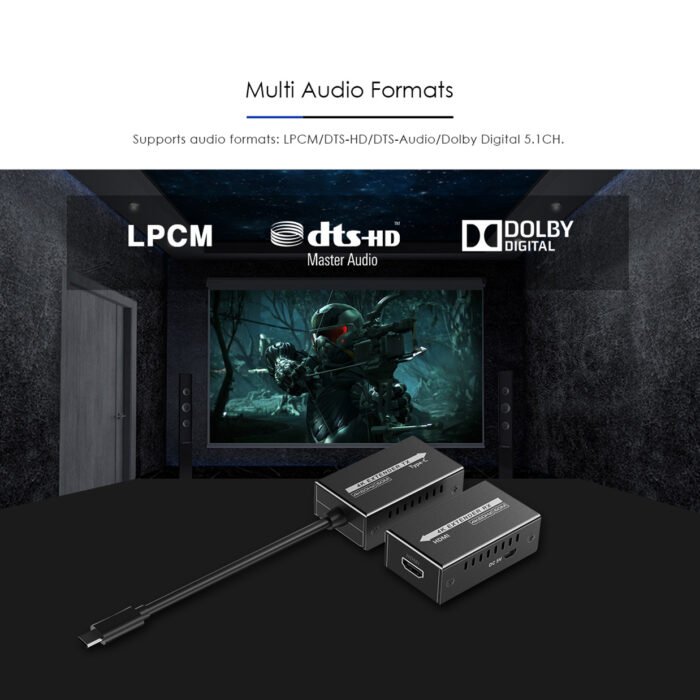

| Audio formats | PCM, DTS, Dolby |
| HDR10 | Supported |
| HDMI 3D | Supported |
| EDID passthrough | Supported, auto downscaling |
| Operating Environment | |
| Working temperature | -20~55°C |
| Storage temperature | -30~60°C |
| Humidity | 0~90%RH (no condensation) |
| Physical Properties | |
| Material | ABS |
| Color | Black |
| Dimension | Inches: 2.64 (L) x 1.47 (W) x 0.84 (H) mm: 67 (L) x 37.3 (W) x 21.4 (H) mm |
| Cable length: 6.5 in | |
| Dimension | Inches: 2.64 (L) x 1.47 (W) x 0.84 (H) |
| mm: 67 (L) x 37.3 (W) x 21.4 (H) | |
| Weight | TX: 3oz (85g) RX: 2.54oz (72g) |
| Misc | |
| ESD Protection | 1a Contact discharge level 2 (±4KV) |
| 1b Air discharge level 3 (±8KV) | |
| Implementation of the standard: IEC61000-4-2 |
[/table]
Warranty
Limited Warranty: 2 Year
