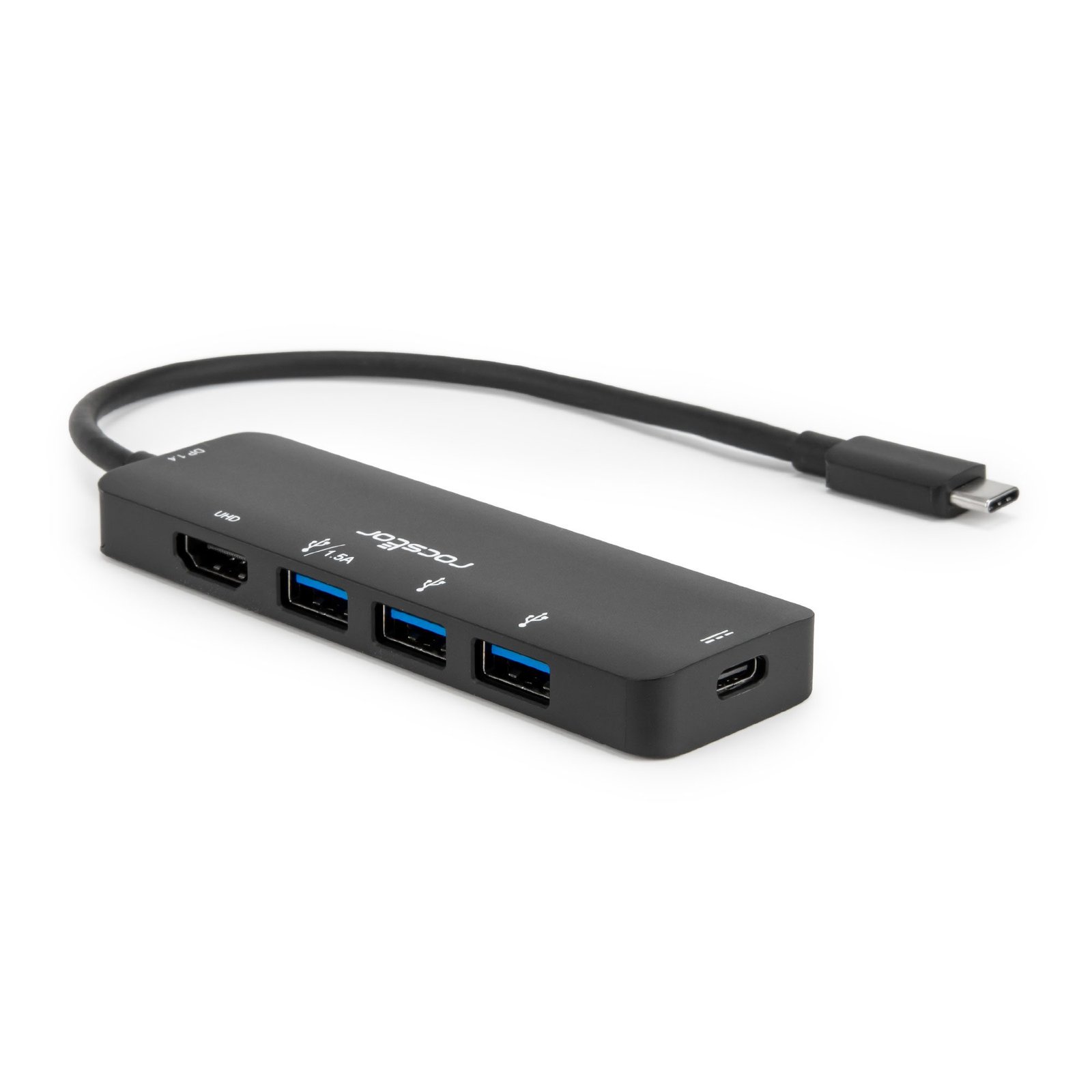

The Rocstor Premium USB Type-C 3-in-1 4K Multiport Adapter is the perfect solution for extending the port capabilities of Type-C and Thunderbolt 3 or 4 hosts, such as PCs, laptops, and mobile phones. This compact hub features an HDMI port, a USB-A port, and a Type-C female port, making it ideal for devices with a single Type-C port. Equipped with the latest DisplayPort 1.4 Alt mode supported IC, the adapter supports HDMI video output at a maximum resolution of 4K @ 60Hz while simultaneously transferring USB 3.1 data at up to 5Gbps. Additionally, the Type-C female port supports PD 3.0 with a maximum power delivery of 100 W when connected to a PD Adapter and facilitates data transmission at speeds up to 5Gbps when connected to a Type-C device.
Compatible with all DP Alt mode supported Type-C hosts, the Rocstor 3-in-1 Adapter ensures seamless integration and enhanced functionality. It supports HDR, HDCP 2.2 & HDCP 1.4, and multiple color depth outputs, providing an exceptional visual experience. The USB-A port allows for high-speed data transfer and downstream charging up to 7.5W, while the Type-C port offers both power delivery and data transfer capabilities. Designed for robust performance and versatility, the Rocstor USB Type-C 3-in-1 4K Multiport Adapter is an essential accessory for maximizing your device’s connectivity and productivity. Backed by Rocstor 2-year limited warranty and lifetime free technical support.
Key Features:
- Multiport Expansion: Connects a single Type-C port to HDMI, USB-A, and Type-C PD/data ports.
- High-Resolution HDMI Output: Supports 4K/60Hz resolution with DP 1.4 Alt mode and 18Gbps bandwidth.
- USB-A Port: Provides up to 5Gbps data transfer and supports max 7.5W (5V/1.5A) downstream charging.
- Type-C PD Charging and Data Port: Supports up to 100W PD charging with PD 3.0 Fast Role Swap and max 5Gbps data transfer.
- HDR and HDCP Support: Ensures optimal video quality with enhanced depth, detail, brightness, contrast, and color gamut.
- Multiple Color Depth Outputs: Supports 6/8/10/12 bit color depth and various pixel formats (RGB, YCbCr 4:4:4, YCbCr 4:2:2).
- Wide Compatibility: Works with all DP Alt mode supported Type-C hosts, including Thunderbolt 3 and 4 ports.
- Enhanced Protection: Includes short-circuit, over-current, and over-voltage protection for safe and reliable performance.
- Warranty: Rocstor 2-Year Limited Warranty
| Technology |
HDMI ,USB-A ,USB-C |
|---|---|
| Host Connector |
USB-C |
| Video Ports |
HDMI |
| Number of Monitors |
1 |
| Data Ports |
USB-A ,USB-C |
User Manual
Specification
[table type=”table-hover”]
|
Power Description
|
|
| Maximum Power Supply Wattage | 100 W |
| Warranty | |
| Limited Warranty | 2 Years |
| Miscellaneous | |
| Package Contents | Main Unit x1 |
| User Manual x1 | |
| Compatibility |
Surface Pro 7, Surface Pro 8, iPad Pro, HP Elite, MacBook, Dell
|
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
|
Physical Characteristics
|
|
| Weight (Approximate) | 1.8oz (53.3g) |
| Form Factor | Portable |
| Height | 0.37in (9.46mm) |
| Width | 1.3in (34mm) |
| Length | 4.5in (105.7mm) |
| Product Color | Black |
|
General Information
|
|
| Product Type | Docking Station |
| Manufacturer Part Number | Y10A308-B1 |
| Manufacturer Website Address | |
| Manufacturer | Rocstor |
| Product Name |
Multiport Adapter
|
| Brand Name | Rocstor |
|
Technical Information
|
|
| Device Supported |
Notebook/Tablet/PC
|
| Connectivity Technology | Wired |
| Screen Mode Supported | Max 4K/60Hz |
| Interfaces/Ports | |
| Host Interface | USB-C Male x1 |
| Video |
HDMI (DP Alt Mode) x1
|
| Data | USB-A x3 |
| PD Charging |
Type-C Female x1
|
| Software | |
| Operating System Supported |
Windows 8, 10, 11
|
| Video |
Android, ChromeOS, iPadOS
|
| Network |
Mac OS 14, Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur, Mac OS X 10.15 Catalina, Mac OS X 10.14 Mojave, Mac OS X 10.13 High Sierra
|
[/table]
Warranty
Limited Warranty: 2-Year
