1080p HDMI & IR Over IP Extender – up to 393ft – IR Passback – HDMI 1.3 – HDCP 1.4
$99.95

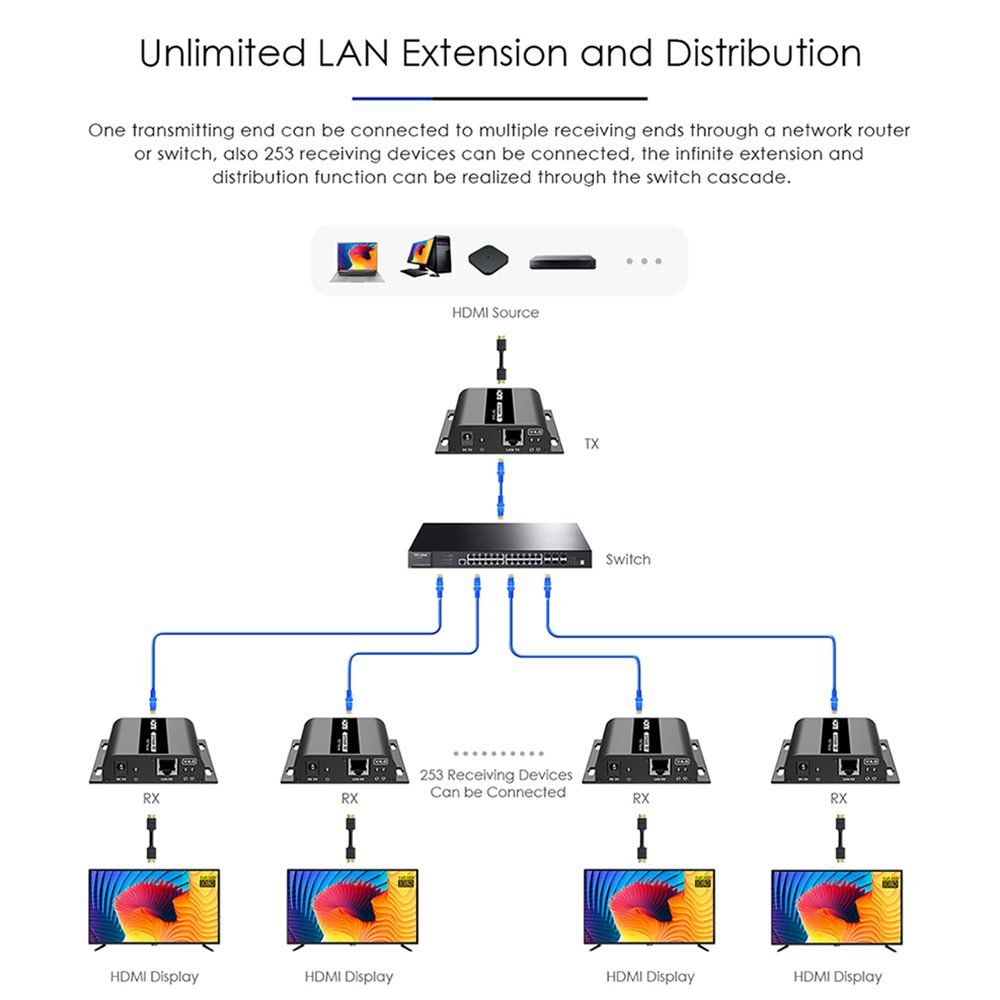

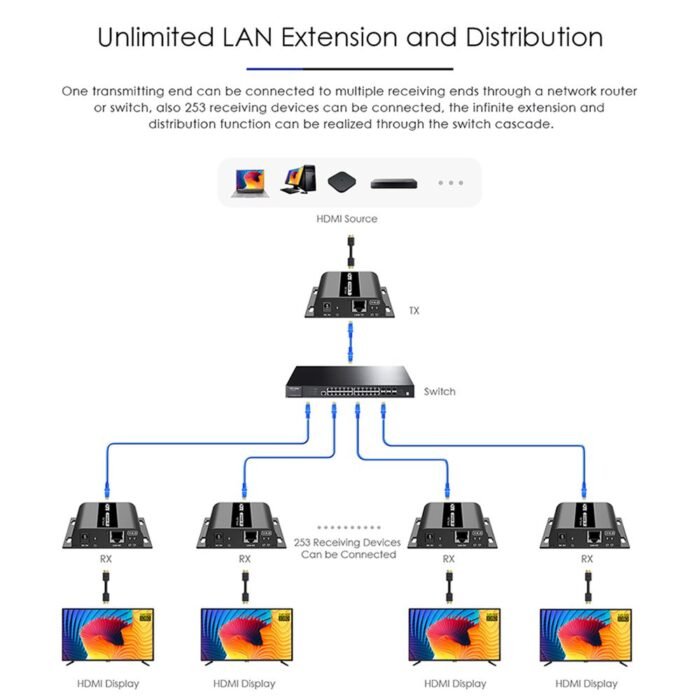

TrueReach 1080p HDMI & IR Over IP Extender – 1080p 60Hz up to 393ft (120m) – Over IP Extender – IR Passback – One transmitter to One and Many Receivers – Industrial Grade – Includes HDMI Transmitter and Receiver (Kit) – Supports IR passback – HDMI 1.3 – Supports HDCP 1.4 – One UL power supply – No Software/drivers required – Cat6,6a, or 7 Cable Required – Metal housing Includes built-on mounting brackets – Black
1080p HDMI & IR Over IP Extender – up to 393ft – IR Passback – HDMI 1.3 – HDCP 1.4
Experience seamless and versatile audiovisual transmission with the Rocstor TrueReach Point to Point 1080P @ 60Hz HDMI & over IP Extender. Engineered to deliver exceptional performance, this advanced extender allows you to extend high-quality HDMI signals over both local and wide area networks. With a transmission distance of up to 394 ft (120 meters), the TrueReach HDMI & over IP Extender ensures flawless, high-definition content delivery.
Immerse yourself in vibrant visuals with support for 1080P resolution at 60Hz with HDR. Whether you’re setting up a home theater, classroom, or digital signage system, the TrueReach HDMI & over IP Extender provides stunning colors, sharp details, and an engaging viewing experience.
The TrueReach HDMI & over IP Extender features IR signal transmission, enabling convenient control of HDMI source devices from the remote display location. With IR pass-through capability, you can effortlessly manage your connected devices without the need for separate control systems or additional equipment.
Built-in lightning, surge, and ESD (electrostatic discharge) protection ensures the safety of your valuable equipment in various electrical environments. With Rocstor’s robust protection technology, your devices are shielded from unpredictable electrical events, offering peace of mind.

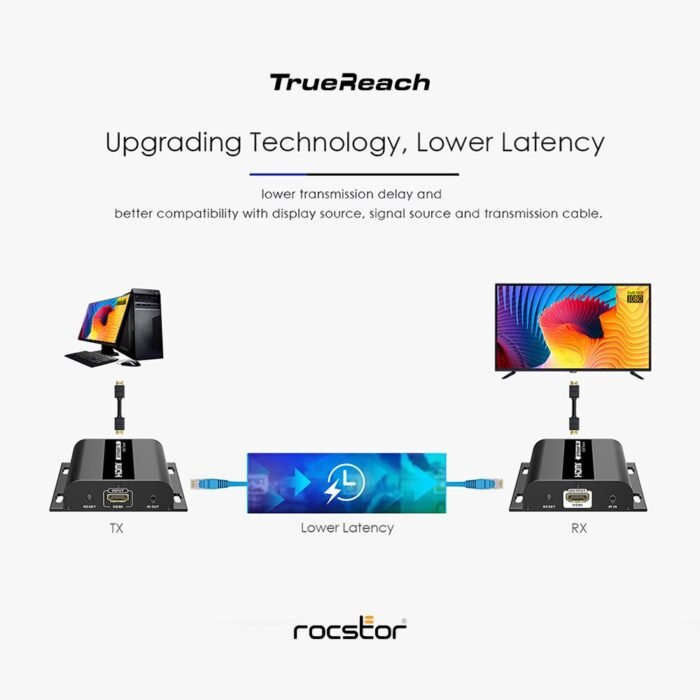

The TrueReach HDMI & over IP Extender utilizes the latest V4.0 technology with low latency and low transmission delay. This ensures minimal delay in signal transmission, providing a smooth and synchronized audiovisual experience, whether you’re streaming video content or conducting interactive presentations.
Thanks to its adaptive technology, the Rocstor TrueReach automatically adjusts parameters to optimize display performance, matching different network cables. This intelligent feature guarantees a stable and reliable connection, maintaining the highest level of video quality and signal integrity.
Features:
• Versatile HDMI & over IP extender for seamless audiovisual transmission
• Supports 1080P @ 60Hz HDR resolution for vibrant visuals
• Transmission distance of up to 394 ft (120 meters) for 1080P @ 60Hz signals
• IR signal transmission with pass-through capability for convenient device control
• Built-in lightning, surge, and ESD protection for equipment safety
• EDID passthrough ensures smooth communication between source and display
• Utilizes V4.0 technology with low latency and low transmission delay
• Adaptive technology automatically adjusts parameters for optimal display performance
• Ideal for home theaters, classrooms, digital signage systems, and more.
User Manual
Specification
[table type=”table-hover”]
| Warranty | |
| Limited Warranty | 2 Year |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Power Description | |
| Input Voltage | 220 V AC |
| 110 V AC | |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Technical Information | |
| Connectivity Technology | Wired |
| Daisy Chain | No |
| Maximum Operating Distance | 393 ft (120m) |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| WEEE | |
| REACH | |
| TAA Compliant | No |
| Physical Characteristics | |
| Form Factor | Mountable |
| Transmitter Length | 3.78 in (9.60 cm) |
| Transmitter Height | 0.94 in (2.39 cm) |
| Transmitter Width | 3.66″ (9.30 cm) |
| Receiver Length | 3.78″ (9.60 cm) |
| Receiver Height | 0.94″ (2.39 cm) |
| Receiver Width | 3.66″ (9.30 cm) |
| Transmitter Weight (lbs) | 0.3 lbs (0.14 kg) |
| Receiver Weight (lbs) | 0.3 lbs (0.14 kg) |
| Product Color | Black |
| Product Material | Aluminum |
[/table]
Warranty
Limited Warranty: 2 Year
